Targeted 70mm acoustic depth for deep tendon & calcification relief.
BUILT FOR REHABILITATION & RECOVERY PRACTICES
Contact Us

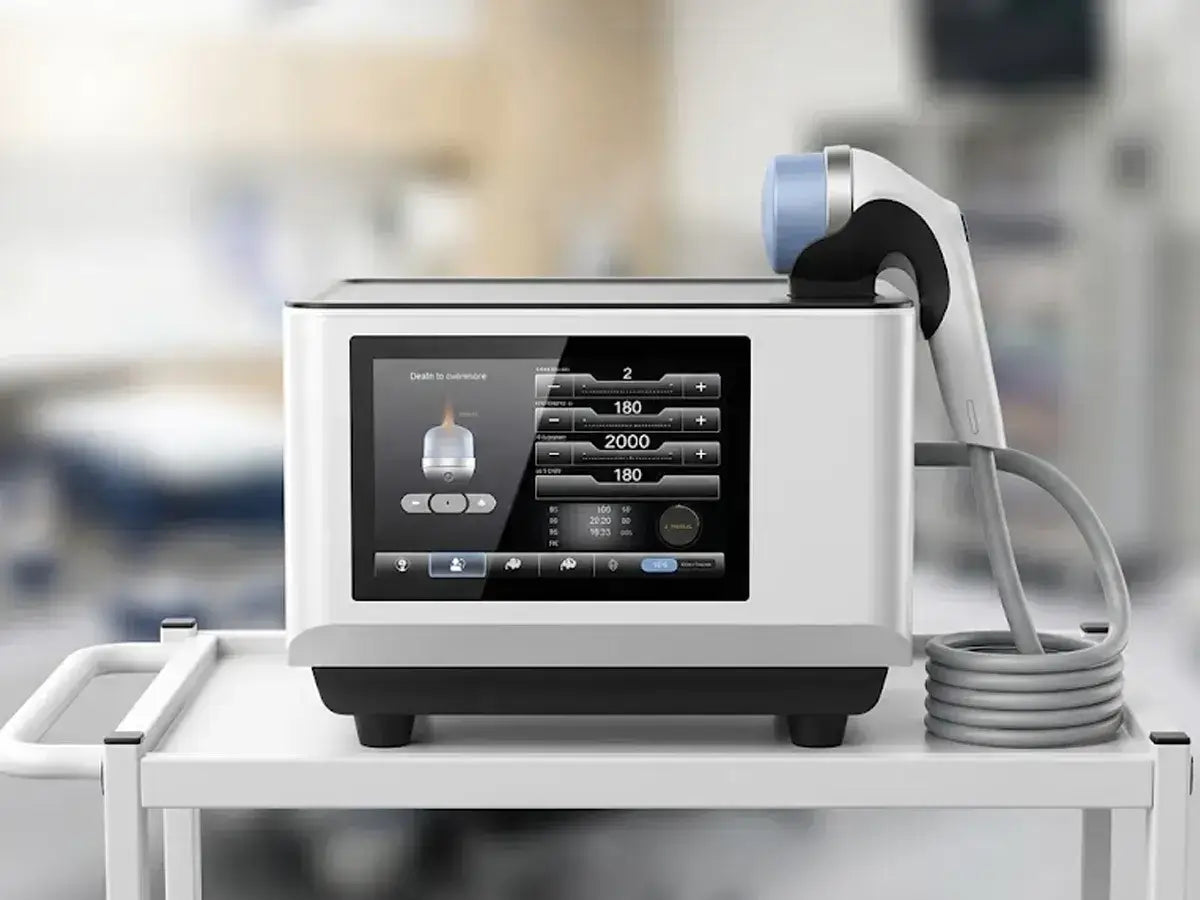

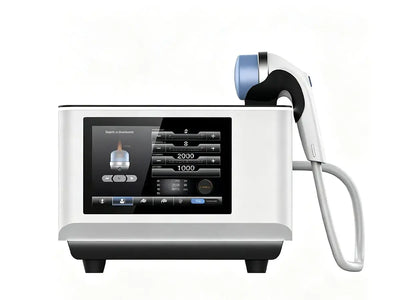

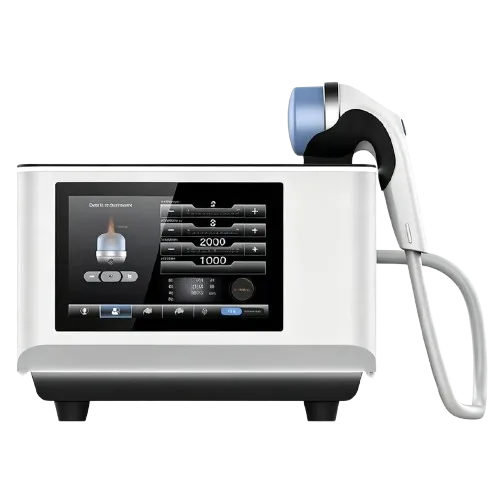

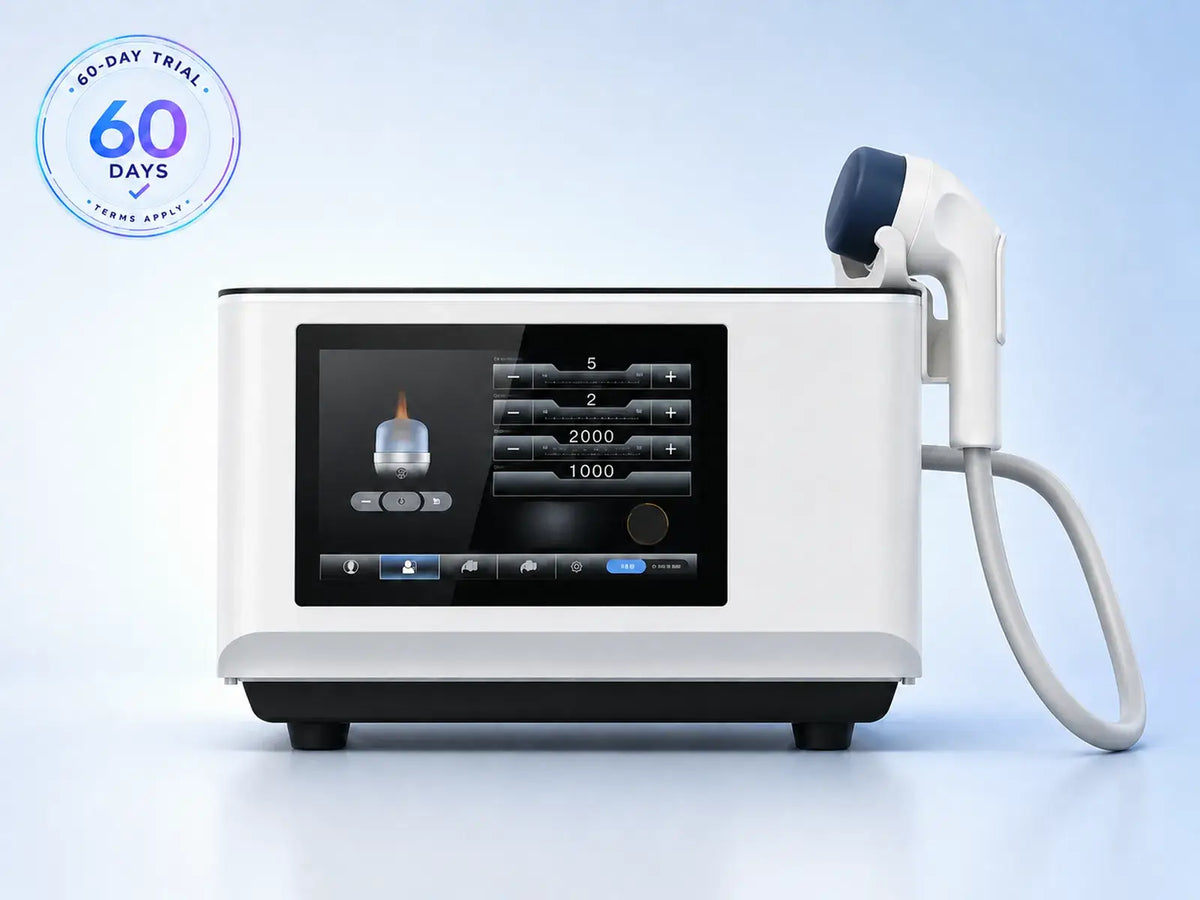

Focused Shockwave Therapy Machine
A focused acoustic system with adjustable 1–70 mm depth, five water-cushion levels, 13 guided presets and a 10.1-inch touchscreen for controlled professional workflows.
$5,999.00
$6,399.00
SAVE $400
High-Precision Focused Energy
Pre-Set Anatomical Protocols
Smart Touchscreen Control
Configure Accessories
Add Wavecura Extended Warranty
Protect your uptime with Wavecura Care +! It offers all the coverage included in the Standard Warranty for your added peace of mind.
Quantity
Description & Key Features
Professional-Grade Focused Shockwave Therapy
The Focused Shockwave Therapy Device utilizes high-precision electromagnetic focused technology to deliver targeted, deep-tissue acoustic pressure waves directly into musculoskeletal structures and deep myofascial layers. Engineered for non-invasive chronic pain relief, deep lesion rehabilitation, and rapid tissue recovery, this advanced system offers independent frequency and energy management designed for clinical-grade precision and intuitive workflow control.
Why Choose Focused Shockwave:
- Targeted Electromagnetic Focused Output: Generates concentrated acoustic energy focused directly into deep anatomical sites with minimal skin-surface dispersion.
- Ergonomic Focused Handpiece: Designed for balanced clinical handling, stable energy delivery, and effortless multi-angle positioning during extended therapy sessions.
- Pre-Set Anatomical Clinical Guidance: Built-in multi-zone protocols matching anatomical treatment sites to streamline parameter setup and operational efficiency.
- Smart HD Touchscreen Interface: High-definition digital control screen with clear real-time readouts for frequency levels, energy intensity, and pulse counting.
- Precision Energy & Pulse Management: Independent regulation of shockwave intensity and programmable treatment shot counts for tailored patient therapy.
Technical Specifications
Technical Specifications
- Technology Type: Electromagnetic Focused Shockwave
- Energy Adjustment: Multi-level regulated intensity
- Frequency Adjustment: Multi-stage adjustable strike frequency
- Pre-Set Shot Range: Programmable pulse counts (e.g., 500 – 5,000+ pulses per session)
- Display: HD Digital Touchscreen Control Interface
- Handpiece System: Ergonomic Focused Shockwave Handpiece
- Power & Voltage: 110V–220V Universal Compatibility
- Cooling System: Integrated active ventilation and internal thermal protection
- Warranty: 1-Year Host | 3-Month Handpiece
Recommended Applications
- Chronic Pain Management
- Physical Therapy & Rehabilitation
- Deep Tendinopathy & Ligament Recovery
- Sports Injury Rehabilitation
- Myofascial Trigger Point Relief
- Deep-Seated Calcification Breakdown
- Joint Mobility Improvement
- Deep Musculoskeletal Tissue Regeneration
Target Body Areas
- Shoulder (Rotator Cuff & Calcific Tendonitis)
- Elbow (Tennis & Golfer's Elbow)
- Knee & Patellar Tendonitis
- Foot & Ankle (Plantar Fasciitis & Achilles Tendonitis)
- Hip & Pelvis (Trochanteric Tendon Discomfort)
- Back & Spine-Adjacent Trigger Points
- Deep Muscle & Fascial Attachment Zones
Target Audience & Clinics
- Physical Therapists & Chiropractors
- Sports Medicine Clinics & Athletic Trainers
- Orthopedic & Rehabilitation Centers
- Specialized Pain Management Clinics
- Athletes & Sports Professionals
- Individuals with Deep Chronic Joint or Muscle Pain
- Practitioners Seeking Advanced Focused Acoustic Wave Technology
14-Day Risk-Free Guarantee
We stand behind the quality of our professional shockwave therapy systems. Try it risk-free with our 14-day evaluation period.
Need help deciding?
Talk with our team about the right system, pricing, or your clinic's needs.
Payment methods
The Physics of Focused Shockwave Therapy
Three clinical stages illustrate how electromagnetic focused shockwaves are generated, delivered into deep tissue targets (up to 70mm), and translated into cellular mechanotransduction.
01
Electromagnetic Acoustic Generation
High-voltage capacitance (4.5–50 J) discharges through an internal electromagnetic coil, generating steep acoustic pressure waves. The dynamic fluid-cushion securely couples the applicator to the skin, allowing the acoustic energy to bypass the epidermis without attenuation or surface trauma.
02
Deep Focal Mechanotransduction
Reflected acoustic wavefronts converge into a defined high-density focal volume, penetrating directly into targeted musculoskeletal structures (up to 70 mm depth). Here, peak energy density safely triggers mechanosensitive cellular pathways, stimulating the organelles without thermal damage.
03
Angiogenesis & Tissue Regeneration
Concentrated focal pressure and high-energy cavitation stimulate the release of growth factors like VEGF. This triggers neo-angiogenesis—the formation of new blood vessels—enhancing microcirculation, dissolving chronic calcific deposits, and promoting rapid collagen synthesis across deep bone-tendon interfaces.
Trusted by 300+ Rehabilitation Clinics for Targeted Shockwave Therapy
Clinical Impact Across
Specialized Practice Fields
Explore how wavecura shockwave systems seamlessly integrate into your clinical workflow to solve key operational and therapy bottlenecks.
WAVECURA SOLUTION
PRACTICE IMPACT
Expand Your Clinic’s Treatment Capabilities with Focused Shockwave
Add a high-precision, non-invasive focused acoustic modality that complements hands-on therapy and targeted rehabilitation—giving clinicians deep-tissue targeting precision and greater flexibility when structuring individualized musculoskeletal protocols.
CLINICAL CHALLENGE
Deep-Tissue Treatment Limitations
Manual soft-tissue techniques and surface vibration therapies remain essential, but relying on them alone limits the penetration depth and energy concentration needed for deep-seated tendinopathies and calcified pathologies.
ADDED CAPABILITY
Focused Shockwave Therapy
An electromagnetic focused shockwave system adds concentrated, high-density acoustic energy to the clinical toolkit, featuring targeted tissue depth penetration, body-site anatomical presets, and independent energy regulation for clinician-led care.
01.
Targeted Deep-Tissue Modality
Delivers concentrated electromagnetic acoustic waves directly to deep anatomical lesions with minimal energy dispersion at the skin surface.
02.
Anatomical Clinical Presets
Pre-programmed body-zone clinical protocols and intuitive touchscreen controls streamline parameter selection across diverse patient conditions.
03.
Independent Output Regulation
Multi-level energy intensity and multi-step frequency controls enable tailored treatment dosing for chronic pain relief and accelerated tissue recovery.
Precision-Engineered for
Uncompromising Depth
High-voltage electromagnetic energy, dynamic fluid-cushion focal control, and intuitive clinical software engineered to deliver reproducible deep-tissue outcomes.
Electromagnetic High-Voltage Drive
High-voltage capacitor discharge generates steep acoustic pressure waves, maintaining high focal energy density at target tissues without surface dissipation.
Dedicated SW & ED Applicators
Intelligent terminal recognition supports both standard musculoskeletal handpieces (SW) and specialized low-intensity vascular applicators (ED).

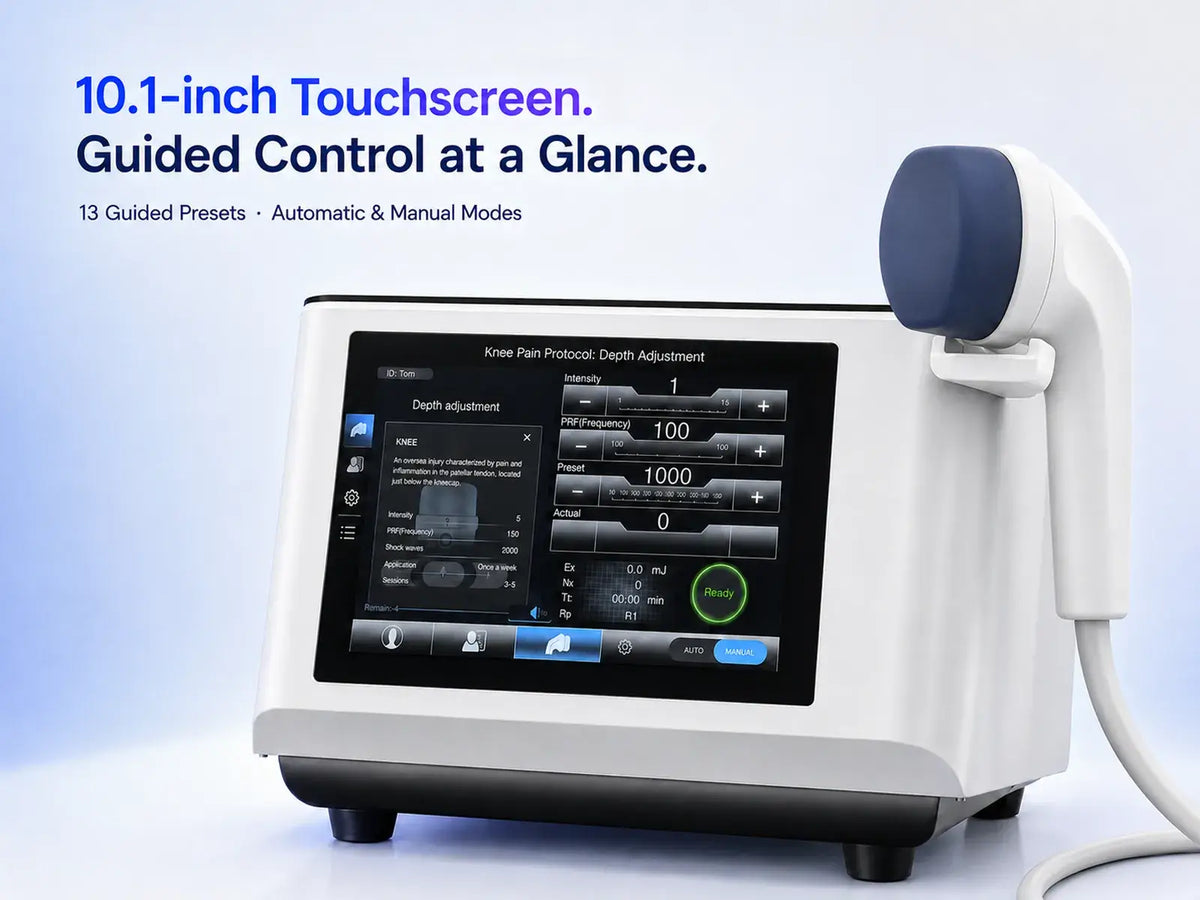

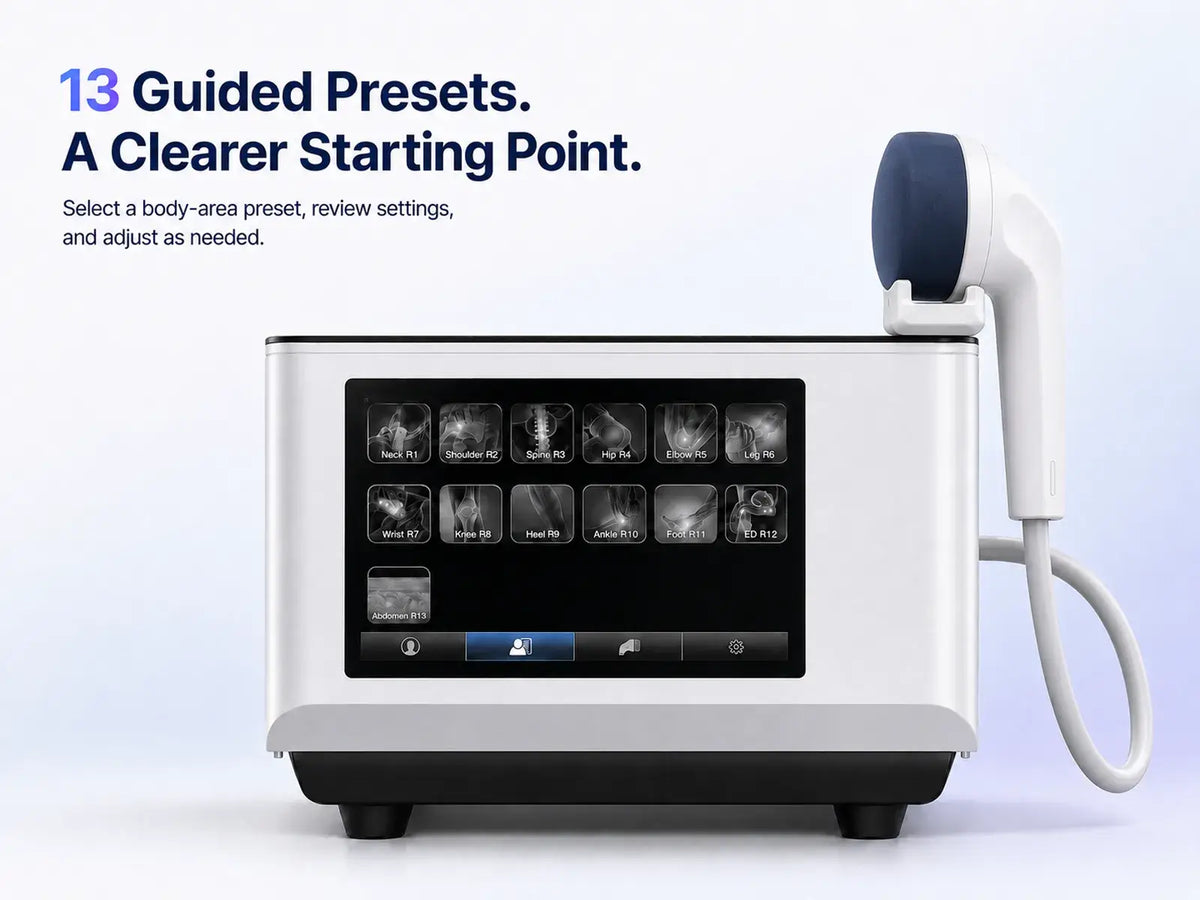

13 Preset Anatomical Protocols
Visual touchscreen UI covers 13 major anatomical regions—from cervical spine to heel—with pre-loaded clinical intensity and frequency baselines.
Integrated Patient Database
Store, search, and recall individual treatment files—recording dates, cumulative shock counts, total delivered energy, and session progress.

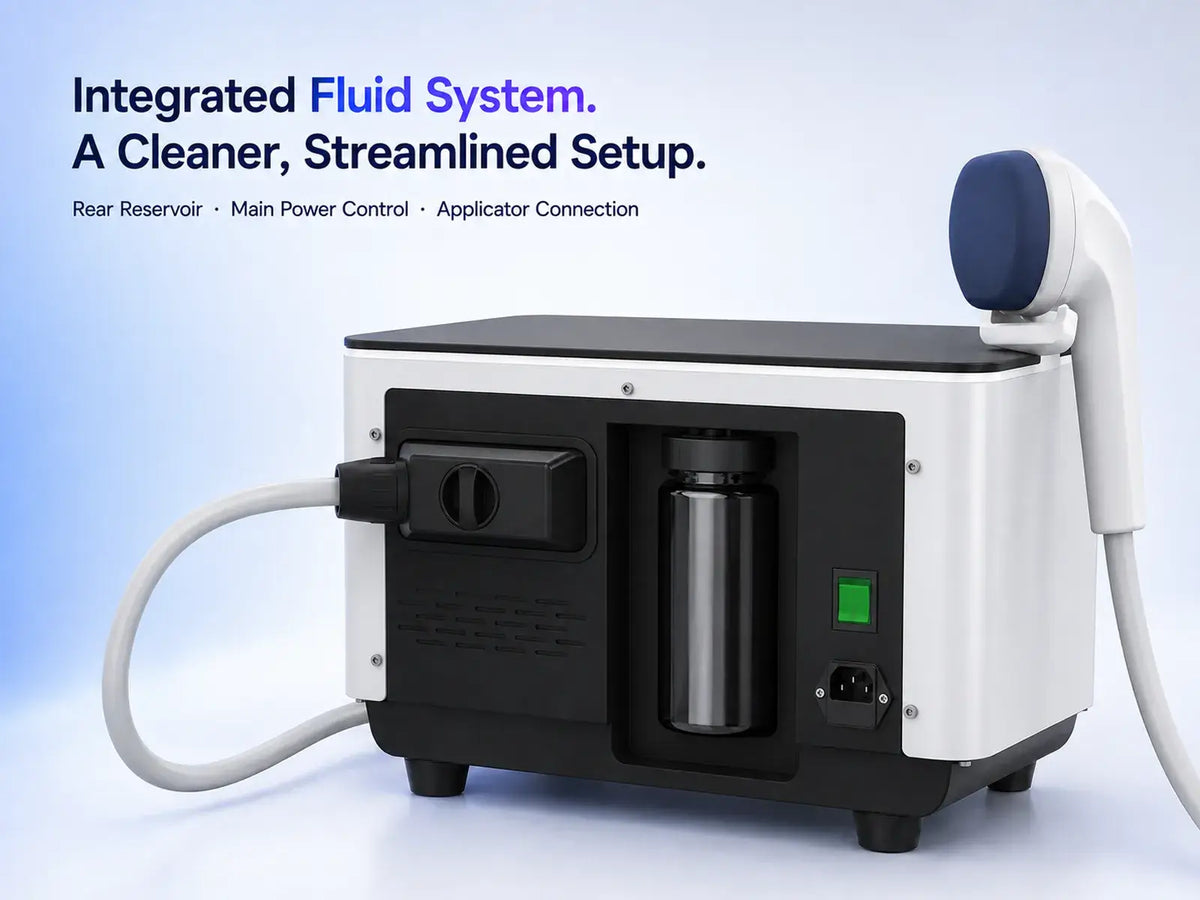

Smart Bubble-Purge & Rapid Drain
Automated bubble-clearing cycles and 60-second motorized drainage protect acoustic impedance matching and maximize core component durability.
Precision Treatment Across 13 Targeted Anatomical Zones
Hover over any anatomical marker to preview clinically calibrated depth levels, energy intensity, frequency, and recommended pulse counts.
Neck
R1 PROTOCOL
Depth Level
Level 2 (15-25mm)
Frequency
90 BPM
Intensity
3 - 5 Bar
Preset Pulses
1500 Shocks
Shoulder
R2 PROTOCOL
Depth Level
Level 3 (30-45mm)
Frequency
120 BPM
Intensity
5 - 8 Bar
Preset Pulses
2000 Shocks
Lumbar
R3 PROTOCOL
Depth Level
Level 4 (50-60mm)
Frequency
150 BPM
Intensity
6 - 10 Bar
Preset Pulses
2500 Shocks
Hip
R4 PROTOCOL
Depth Level
Level 5 (65-70mm)
Frequency
120 BPM
Intensity
7 - 12 Bar
Preset Pulses
2500 Shocks
Elbow
R5 PROTOCOL
Depth Level
Level 1 (0-10mm)
Frequency
90 BPM
Intensity
2 - 4 Bar
Preset Pulses
1500 Shocks
Wrist & Hand
R6/R7 PROTOCOL
Depth Level
Level 1 (0-10mm)
Frequency
60 BPM
Intensity
1 - 3 Bar
Preset Pulses
1000 Shocks

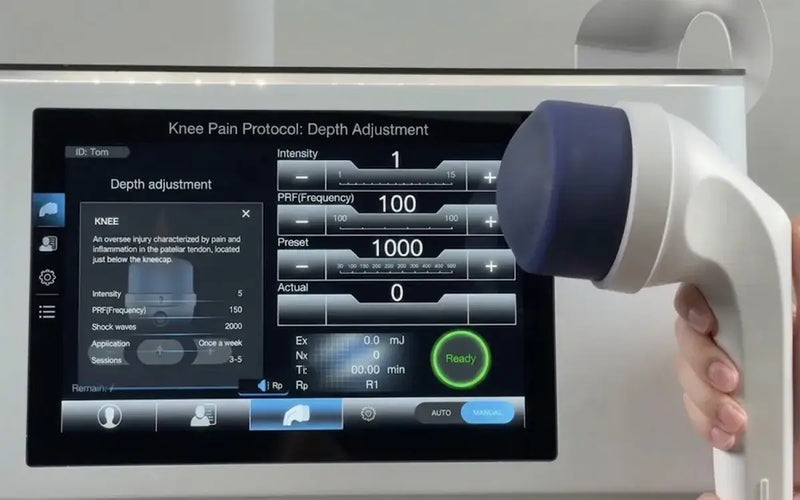

Knee
R8 PROTOCOL
Depth Level
Level 2 (15-25mm)
Frequency
120 BPM
Intensity
4 - 6 Bar
Preset Pulses
2000 Shocks
Lower Leg
R9 PROTOCOL
Depth Level
Level 3 (30-45mm)
Frequency
120 BPM
Intensity
5 - 8 Bar
Preset Pulses
2000 Shocks
Achilles & Ankle
R10 PROTOCOL
Depth Level
Level 1 (0-10mm)
Frequency
90 BPM
Intensity
3 - 5 Bar
Preset Pulses
1500 Shocks
Heel
R11 PROTOCOL
Depth Level
Level 2 (15-25mm)
Frequency
90 BPM
Intensity
4 - 7 Bar
Preset Pulses
2000 Shocks
PRECISION ACOUSTIC FOCUS

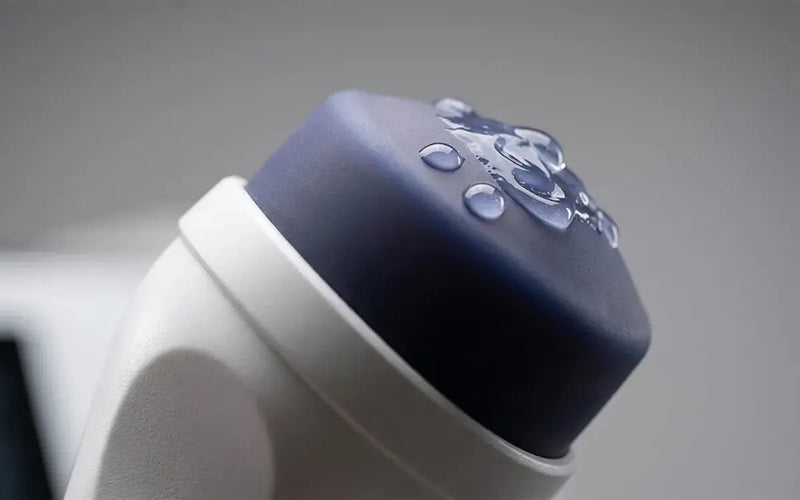

Integrated Dynamic Depth Focus Applicator
Eliminate manual probe replacements. Seamlessly calibrate focal depth from superficial tissue to deep skeletal structures via intelligent fluid-cushion expansion.

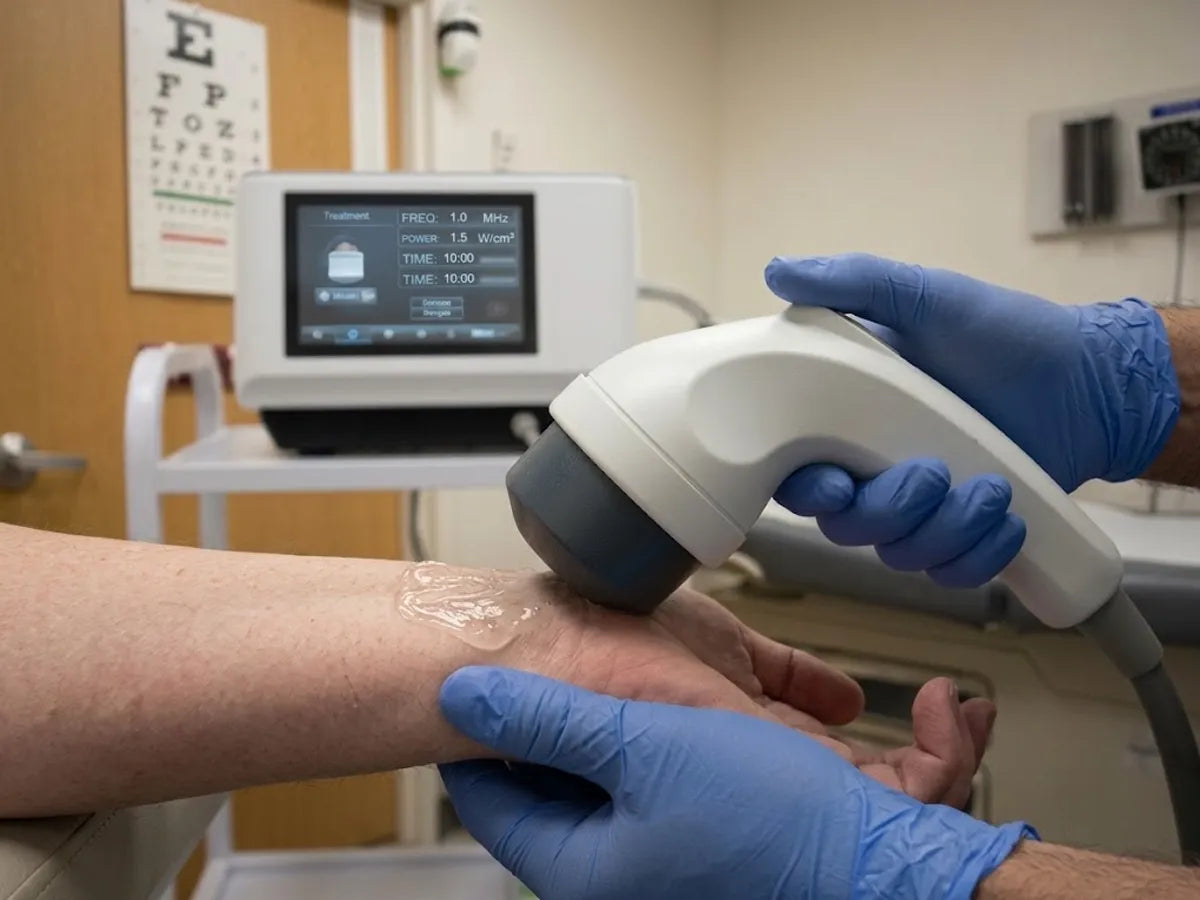

Superficial & Enthesis Targeting
Focuses shockwave energy directly beneath the epidermal interface. Minimizes energy dissipation for superficial tendon insertions and small joints.
Wrist, Hand & Foot Small Tendon Enthesopathies
Plantar Fascia Insertion & Achilles Enthesopathy
Lateral Epicondylitis (Tennis Elbow)
Mid-Shallow Fascia & Tendon Body
Shifts the acoustic focal center into intermediate muscular and fascial layers, dispersing compressive load across active tendon bundles.
Patellar Tendinopathy (Jumper's Knee)
Rotator Cuff Tendinitis & Supraspinatus Pain
Tibial Stress Syndrome (Shin Splints)
Mid-Deep Chronic Fibrosis & Calcification
Concentrates peak acoustic cavitation onto stubborn calcific deposits and chronic scarred tissues deep within muscle bellies.
Calcific Tendinitis of the Shoulder
Greater Trochanteric Pain Syndrome (Hip Bursitis)
Chronic Hamstring & Gluteal Insertion Tears

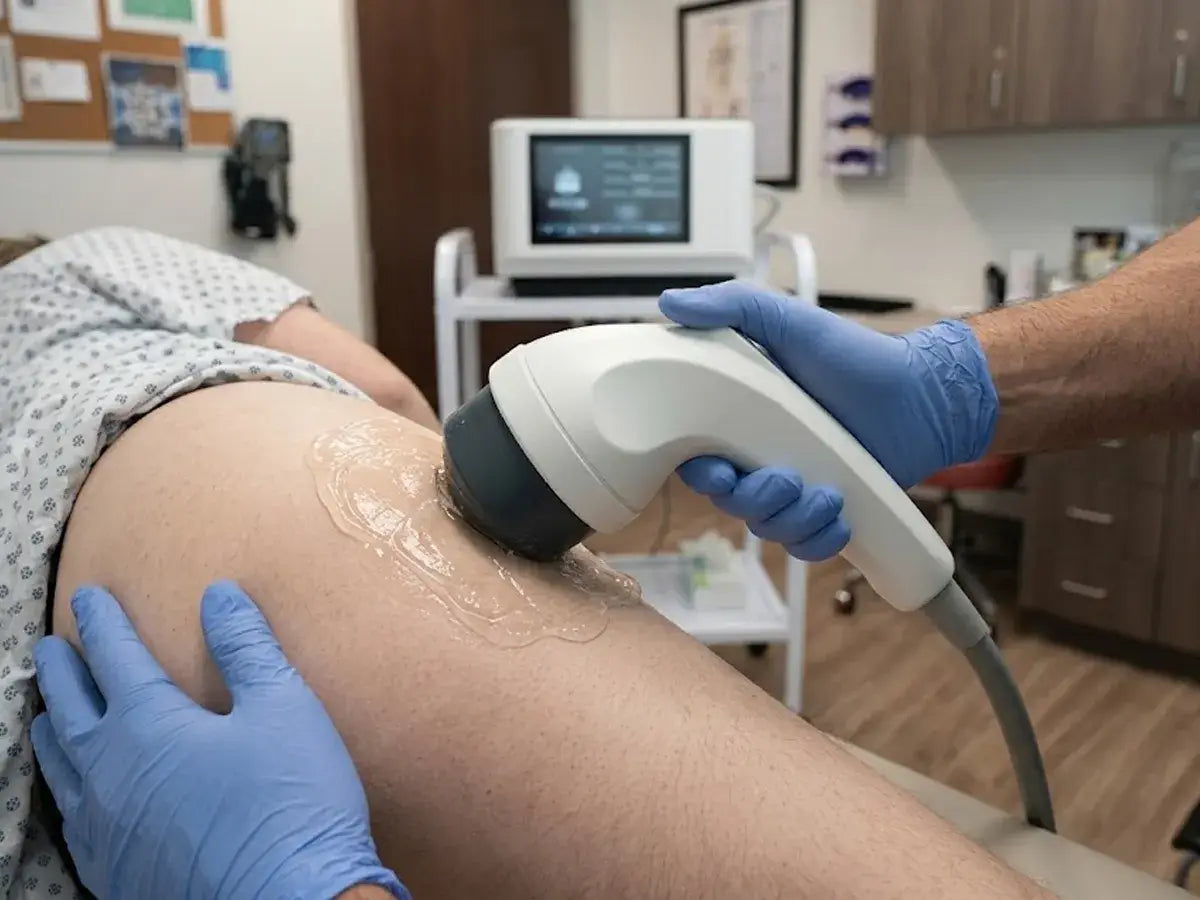

Deep Skeletal & Periarticular Target
Penetrates deep periarticular and periosteal layers to stimulate osteoblast proliferation and microcirculation without surface nerve irritation.
Deep Gluteal Syndrome & Proximal Hamstring Tears
Delayed Bone Healing & Stress Fractures
Deep Musculoskeletal Fibrosis

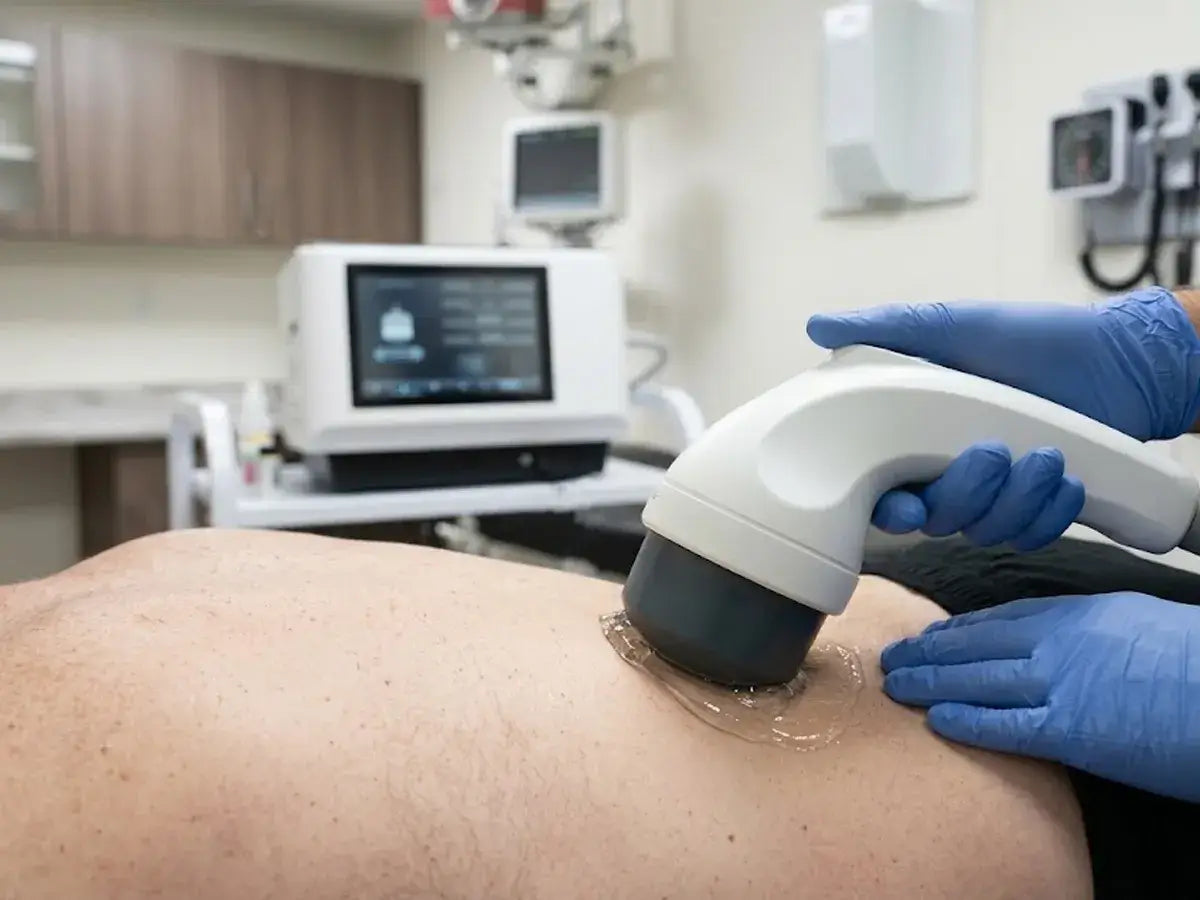

Maximum Depth & Dense Tissue Target
Reaches the deepest musculoskeletal compartments. Delivers focused shockwaves through dense tissue safely without attenuation.
Deep Hip Joint & Sub-Femoral Pathologies
Deep Spinal Periosteal Tissue Modulation
Refractory Non-Unions & Deep Scar Remodeling
ENERGY FLUX DENSITY
0.05 – 0.25 mJ/mm²
Low-energy soft tissue protocol
RECOMMENDED PULSES
1,000 – 1,500 Shocks
Targeted point-trigger delivery
ENERGY FLUX DENSITY
0.15 – 0.35 mJ/mm²
Intermediate mechanical transduction
RECOMMENDED PULSES
1,500 – 2,000 Shocks
Targeted point-trigger delivery
ENERGY FLUX DENSITY
0.25 – 0.45 mJ/mm²
High-density calcific dissolution protocol
RECOMMENDED PULSES
1,500 – 2,000 Shocks
Targeted point-trigger delivery
ENERGY FLUX DENSITY
0.30 – 0.50 mJ/mm²
Deep skeletal and periosteal regeneration
RECOMMENDED PULSES
2,000 – 2,500 Shocks
Targeted point-trigger delivery
ENERGY FLUX DENSITY
0.35 – 0.55 mJ/mm²
Maximum deep-field coherence calibration
RECOMMENDED PULSES
2,000 – 3,000 Shocks
Targeted point-trigger delivery
Why Clinics Choose Wavecura
Compare key clinical parameters and see how our advanced pneumatic technology outperforms conventional shockwave devices.
← Scroll horizontally to compare models →
|
RECOMMENDED FOR CLINICS

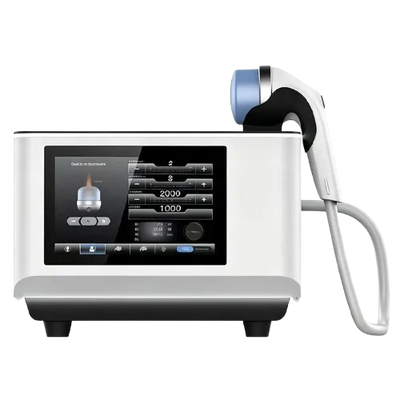

WaveCura Focused SystemCapacitor-Based Energy Control |

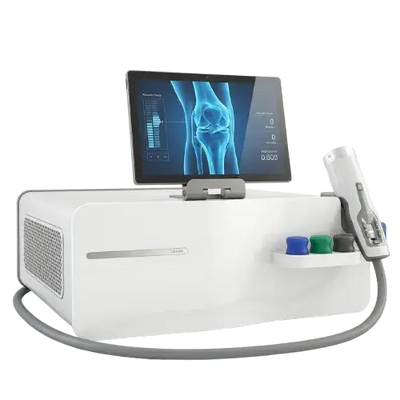

Premium Focused SystemEuropean Premium Brand |

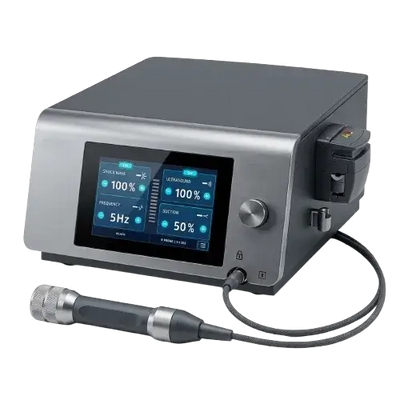

Standard Focused SystemConventional High-End Unit |
|
|---|---|---|---|
| Acoustic Technology | Electrohydraulic Focus | Piezoelectric Focus | Spark-Gap Focus |
| Focal Depth Range | 0 – 70 mm (Dynamic Fluid-Cushion) | 0 – 65 mm (Gel-Pads) | 0 – 50 mm (Fixed Ring) |
| Depth Calibration Speed | Instant (≤ 3s Touchscreen) | ~30s Manual Pad Swapping | ~20s Mechanical Dialing |
| Capacitance Energy | 4.5 J – 50 J High Energy | Standard Medical Output | Low-Medium Output |
| Applicator Lifespan | ≥ 500,000 Shocks Guaranteed | ~300,000 Shocks | ~200,000 Shocks |
| Display & OS System | 10.1" Android Touch | 8.4" Embedded Interface | 5.7" Basic Monochrome |
| Consumables Cost | Zero Gel-Pad Wear | High (Frequent Pad Buy) | Moderate Wear |
| Clinic Payback Period | ~2 – 4 Months | ~12 – 18 Months | ~6 – 9 Months |
* Specification comparisons are based on publicly available data for standard clinical-grade pneumatic shockwave systems.
CLINICAL WORKFLOW
Simple Workflow From Setup To Treatment
Designed to help practitioners move smoothly from patient preparation to treatment delivery.
FULL CLINICAL PROCEDURE
01.
Initialize & Select Protocol
Select from 13 pre-programmed anatomical protocols or load encrypted patient records via the 10.1" smart OS interface.
02.
Dynamic Depth Calibration
Calibrate focal penetration (0–70 mm) electronically using smart fluid-cushion expansion without probe disassembly.
03.
Configure Energy & Pulses
Fine-tune capacitance energy output (4.5–50 J) and set precise pulse counts for targeted therapeutic dosage.
04.
Deliver Focused Shockwave
Apply acoustic transmission gel and trigger continuous or point-specific acoustic delivery with ergonomic control.
What's In The Box?
Everything you need for immediate clinical operation is included in the complete Wavecura system package.
- 1x Wavecura Dynamic Focus Main Console
- 1x Ergonomic SW Focused Shockwave Handpiece
- 1x Integrated Detachable Water Reservoir Cup
- 1x Precision Acrylic Handpiece Support Bracket
- 1x Heavy-Duty Medical Power Cable
- 1x Specialized Fluid Drainage & Degassing Connector Kit
- 1x Medical-Grade Shockwave Acoustic Coupling Gel
- 1x Comprehensive Clinical Protocol Guide & Official User Manual
Clinical Support & Operational FAQs
Technical guidance and professional service policies for your clinical practice.
How should the fluid-cushion membrane be cleaned and disinfected between patients
Wipe the membrane with a clean damp cloth to remove leftover gel, disinfect using medical wipes containing 70% isopropyl alcohol, and finalize by wiping with sterile/distilled water to prevent skin irritation on the next patient (avoid chlorine- or aldehyde-based disinfectants)
How many treatment sessions are typically required for patient recovery?
Most chronic orthopedic conditions (such as plantar fasciitis, Achilles tendinopathy, or calcific shoulder tendonitis) require 3 to 5 sessions administered once per week, with each session delivering 1,500 to 2,500 shocks depending on the protocol.
What are the main clinical contraindications for focused shockwave therapy?
Absolute contraindications include cardiac pacemakers, active deep vein thrombosis (DVT), acute open wounds/active bleeding, malignant tumors, pregnancy, systemic coagulation disorders, and anatomical areas with metal implants or artificial cosmetic fillers.
Is acoustic coupling gel strictly mandatory during every treatment?
Yes, generous application of medical ultrasound gel on both the applicator membrane and patient skin is mandatory. Firing without sufficient coupling ("dry firing") creates an air barrier that reflects shockwaves back into the handpiece, causing irreversible internal damage and voiding the warranty.
What type of water should be used in the reservoir, and how often should it be changed?
Degassed water is the primary choice, with distilled water as an approved secondary option (tap water is strictly prohibited). High-volume clinics (8–10 patients/day) should change water daily; medium-volume clinics (3–5 patients/day) every 2–3 days; and low-volume practices at least once per week.
Why is the automated degassing system critical for equipment longevity?
Micro-air bubbles trapped in the acoustic fluid chamber cause harmful internal acoustic reflection, leading to membrane rupture and handpiece failure. Wavecura features an automated degassing mode and a 60-second pump drainage cycle to clear all bubbles before firing, ensuring optimal energy delivery and long component life.
What is the primary difference between Focused (FSWT) and Radial (RSWT) shockwave therapy?
Radial devices generate superficial pneumatic pressure waves that disperse widely with peak energy at the skin surface. Wavecura Focused shockwave concentrates electrohydraulic acoustic energy into a targeted focal point deep within tissues (up to 70 mm), allowing non-invasive treatment of deep calcifications and non-unions without surface trauma.
How does dynamic fluid-cushion depth adjustment differ from traditional gel pads?
Traditional focused shockwave units require mechanical disassembly to replace fragile silicone gel pads for different penetration depths. Wavecura utilizes an electronically controlled fluid-cushion that expands and contracts dynamically across 5 preset levels (0–70 mm) directly via the touchscreen, eliminating treatment interruptions and recurring pad replacement costs.
What kind of warranty, service, and technical support are provided?
Each workstation includes a comprehensive manufacturer warranty on the main console and core electronics, backed by rapid priority replacement parts dispatch, video technical troubleshooting, and direct clinical engineer guidance.
What electrical power input is required, and is it internationally compatible?
The system operates on AC 220V or factory-configured AC 110V ($\pm 10\%$, 50/60 Hz) with a rated power of $\le 550\text{ VA}$, making it fully compatible with standard medical wall outlets in the US, Europe, and worldwide.
How quickly can a typical physical therapy or chiropractic clinic achieve ROI?
By eliminating expensive recurring gel-pad consumable costs and offering non-invasive focused therapy at $100–$200 per session, most clinics fully recoup their initial investment within 2 to 4 months with just 3–5 patients per week.
Is a specialized ED (Men’s Health) applicator available with this unit?
Yes. In addition to the standard musculoskeletal SW focused applicator, an optional specialized ED focused applicator can be integrated seamlessly, featuring dedicated low-intensity protocols for urology and men's health practices.
Can the system software and clinical treatment protocols receive updates?
Yes. With built-in Wi-Fi (2.4G/2.5G) connectivity, the operating system supports Over-The-Air (OTA) software updates, expanding clinical presets and conducting automatic firmware diagnostics upon boot.
How does the integrated patient database streamline daily clinical workflows?
The 10.1" Android system allows practitioners to create patient IDs, record treatment history, track total cumulative energy ($E_x$) and duration, and recall personalized treatment parameters in seconds across multiple therapists.
What is the rated lifespan of the focused applicator and core internal modules?
The focused handpiece is guaranteed for over 500,000 shocks (with functional lifespan extending past 1,000,000), the high-voltage capacitor is rated for 2,000,000+ pulses, the spark trigger is rated for 1,000,000+ discharges, and the circulation pump is rated for 6,000+ operating hours.
